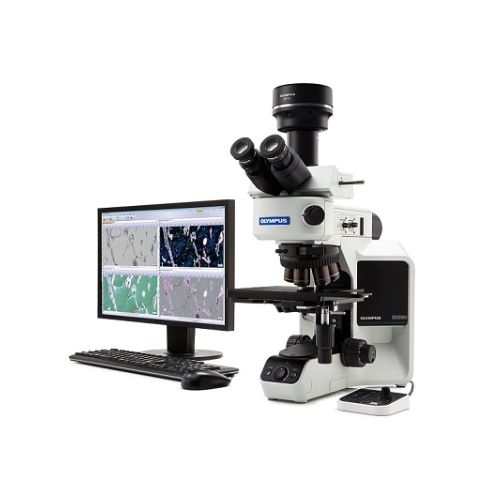

Industrial Microscopes BX53M

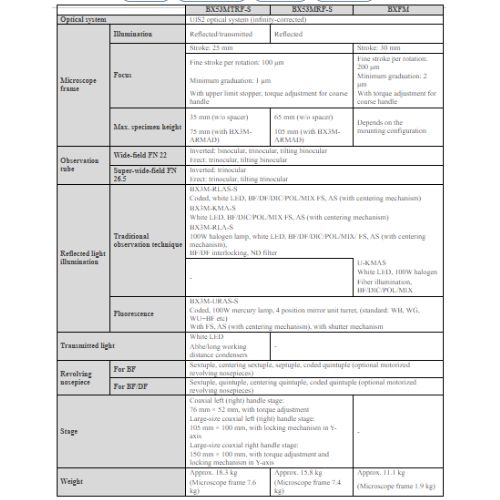

Model: BX53M

Liên hệ: 0936.49.67.69

OVERVIEW

Advanced Microscopy Simplified

Designed with modularity in mind, the BX3M series provide versatility for a wide variety of materials science and industrial applications. With improved integration with PRECiV software, the BX53M provides a seamless workflow for standard microscopy and digital imaging users from observation to report creation.

Choose the Best Model

Six BX53M suggested configuration provide you with flexibility to choose the features that you need.

• For General use:  Entry, Standard, Advanced
• For Dedicated use:  Fluorescence, Infrared, Polarization
• Various configurations to meet users' requirements
• Modular Design, Build Your System Your Way

Comfortable and Easy to Use

The BX53M simplifies complex microscopy tasks through its well-designed and easy-to-use controls. Users can get the most out of the microscope without the need for extensive training. The easy, comfortable operation of the BX53M also improves reproducibility by minimizing human error.

• Simple Illuminator

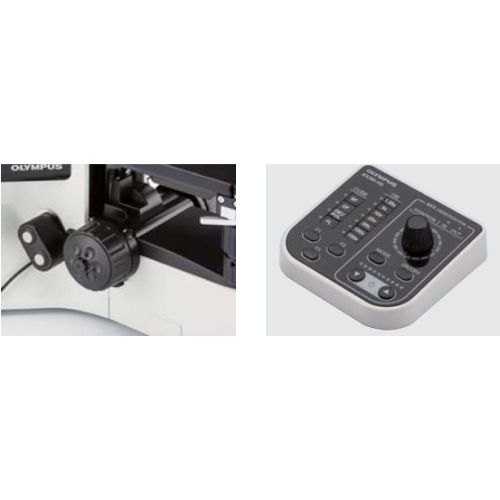

• Intuitive Microscope Controls
• Find the Focus Quickly
• Consistent Illumination
• Easy and Ergonomic Operation
• Easy Restore Microscope Settings
• Basic Measurement Functions

Functional

The BX53M maintains the traditional contrast methods of conventional microscopy, such as brightfield, darkfield, polarized light, and differential interference contrast. As new materials are developed, many of the difficulties associated with detecting defects using standard contrast methods can be solved using advanced microscopy techniques for more accurate and reliable inspections. New illumination techniques and options for image acquisition within PRECiV image analysis software give users more choices of how to evaluate their samples and document findings.

• The Invisible Becomes Visible
• Create All-in-focus Images
• Easily Move the Stage for Panorama
• Capture Both Bright and Dark Areas
• Adaptable to Suit Observational and Analysis Preferences
• Accommodates a Wide Range of Samples

Leading-Edge Optics

Olympus’ history of developing high-quality optics has resulted in a record of proven optical quality and microscopes that offer excellent measurement accuracy.

• Superior Optical Performance
• Stable Color Temperature and High-Intensity White LED Illumination
• Support Precise Measurement
• Seamless Stitching

FUNCTIONALITY

The Invisible Becomes Visible: MIX Observation

The BX53M’s MIX observation technology combines traditional illumination methods with darkfield illumination. When the MIX slider is used, its ring of LEDs shine directional darkfield on the sample. This has a similar effect to traditional darkfield, but provides the ability to select a quadrant of the LEDs in order to direct the light from different angles. This combination of directional darkfield and brightfield, fluorescence, or polarization is called MIX illumination, and is especially helpful to highlight defects and differentiate raised surfaces from depressions.

Create All-in-focus Images: EFI

The Extended Focus Imaging (EFI) function within PRECiV software captures images of samples whose height extends beyond the depth of focus of the objective and stacks them together to create one image that is all in focus. EFI can be executed with either a manual or motorized Z-axis and creates a height map for easy structure visualization. It is also possible to construct an EFI image while offline within Stream Desktop.

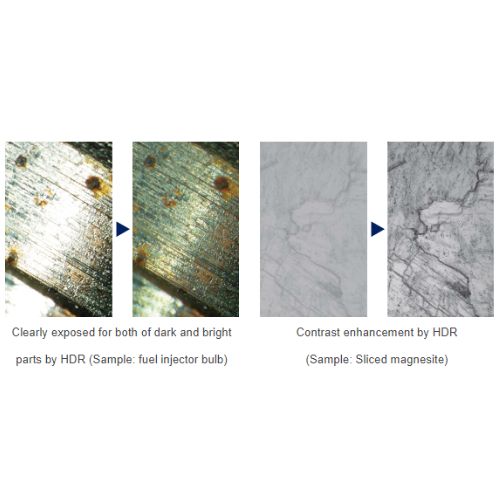

Capture Both Bright and Dark Areas: HDR

Using advanced image processing, high dynamic range (HDR) adjusts for differences in brightness within an image to reduce glare. HDR improves the visual quality of digital images thereby helping to generate professional-looking reports.

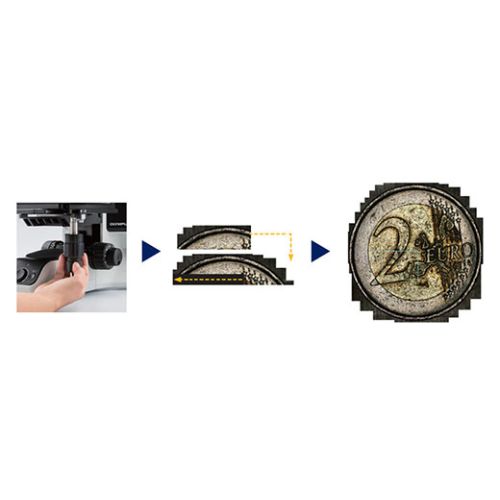

Easily Move the Stage for Panorama: Instant MIA

You can now stitch images easily and quickly just by moving the XY knobs on the manual stage; no motorized stage is necessary. PRECiV software uses pattern recognition to generate a panoramic image giving users a wider field of view than a single frame.

Versatile Measurement Capability

Routine or Basic Measurement Functions

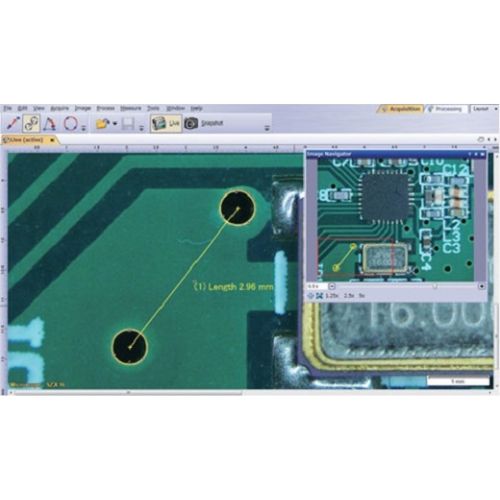

Various measurement functions are available through PRECiV so that the user can easily obtain useful data from the images. For quality control and inspection, measuring features on images are often required. All levels of PRECiV licenses include interactive measurement functions such as distances, angles, rectangles, circles, ellipses, and polygons. All measured results are saved with the image files for further documentation.

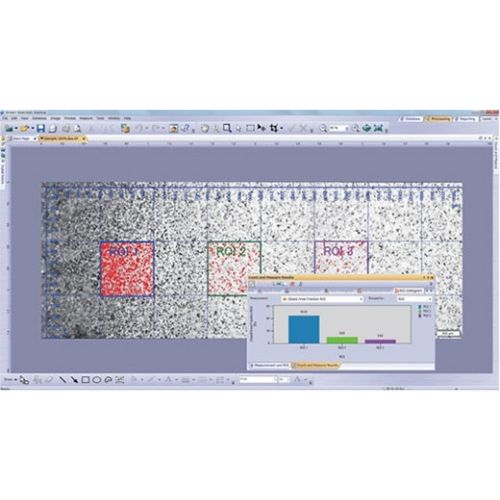

Count and Measure

Object detection and size distribution measurement are among the most important applications in digital imaging. PRECiV incorporates a detection engine that utilizes threshold methods to reliably separate objects (e.g., particles, scratches) from the background.

Materials Science Solutions

PRECiV offers an intuitive, workflow-oriented interface for complex image analysis. At the click of a button, the most complex image analysis tasks can be executed quickly, precisely, and in compliance with most common industrial standards. With a significant reduction in processing time for repeated tasks, materials scientists can concentrate on analysis and research. Modular add-ins for inclusions and intercept charts are easily performed at any time.

3D Sample Measurement

When using an external motorized focus drive, an EFI image can be quickly captured and displayed in 3D. The height data acquired can be used for 3D measurements on the profile or from the single view image.

Scheduled to be supported in PRECiV v.1.2.

View More Sample Types and Sizes

The new 150 × 100 mm stage provides a longer travel in the X direction than previous models. This, together with the flat-top design, enables large samples or multiple samples to be easily placed on the stage. The stage plate has tapped holes to attach a sample holder. The larger stage provides flexibility to users by enabling them to inspect more samples on one microscope, saving valuable lab space. The stage’s adjustable torque facilitates fine positioning under high magnification with a narrow field of view.

Flexibility for Sample Height and Weight

Samples up to 105 mm can be mounted on the stage with the optional modular unit. Due to the improved focusing mechanism, the microscope can accommodate a total weight (sample + stage) of up to 6 kg. This means that larger and heavier samples can be inspected on the BX53M, so fewer microscopes are required in the lab. By strategically positioning a rotatable holder for 6-inch wafers off-center, users can observe the whole wafer surface by just rotating the holder when moving through the 100 mm travel range. The stage's torque adjustment is optimized for ease of use and the comfortable handle grip makes it easy to find the region of interest of the sample.

Flexibility for Sample Size

When samples are two large to place on a traditional microscope stage, the core optical components for reflected light microscopy can be configured in a modular configuration. This modular system, the BXFM, can be mounted to a larger stand via a pole or mounted to another instrument of choice using a mounting bracket. This enables users to take advantage of Olympus’ renowned optics even when their samples are unique in size or shape.

Protect Electronic Devices from Electrostatic Discharge: ESD Compatible

The BX53M has an ESD dissipation capability that protects electronic devices from static electricity caused by human or environmental factors.
